Introduction: The Core Procurement Dilemma in Linear Motion

For industrial buyers sourcing hybrid stepper motors for precision linear motion systems—such as syringe pumps, medical infusion devices, automated assembly stages, and logistics sorters—one of the most critical decisions is choosing between ball screw stepper motors and lead screw stepper motors. Each technology offers distinct technical, cost, and maintenance profiles that directly impact system performance and total cost of ownership (TCO). This article provides a structured comparison of these two types, a strategic analysis of sourcing from Chinese manufacturers vs. international brands, a three-step decision model, and a real-world case study that highlights how a European medical OEM successfully selected a custom ball screw solution from Changzhou ACT Motor Co., Ltd.

1. Product Comparison: Ball Screw vs. Lead Screw Hybrid Stepper Motors

To help industrial buyers make an informed choice, we compare the two technologies across four key dimensions—technical parameters, suitable applications, cost, and maintenance difficulty—using representative models from ACT MOTOR’s portfolio.

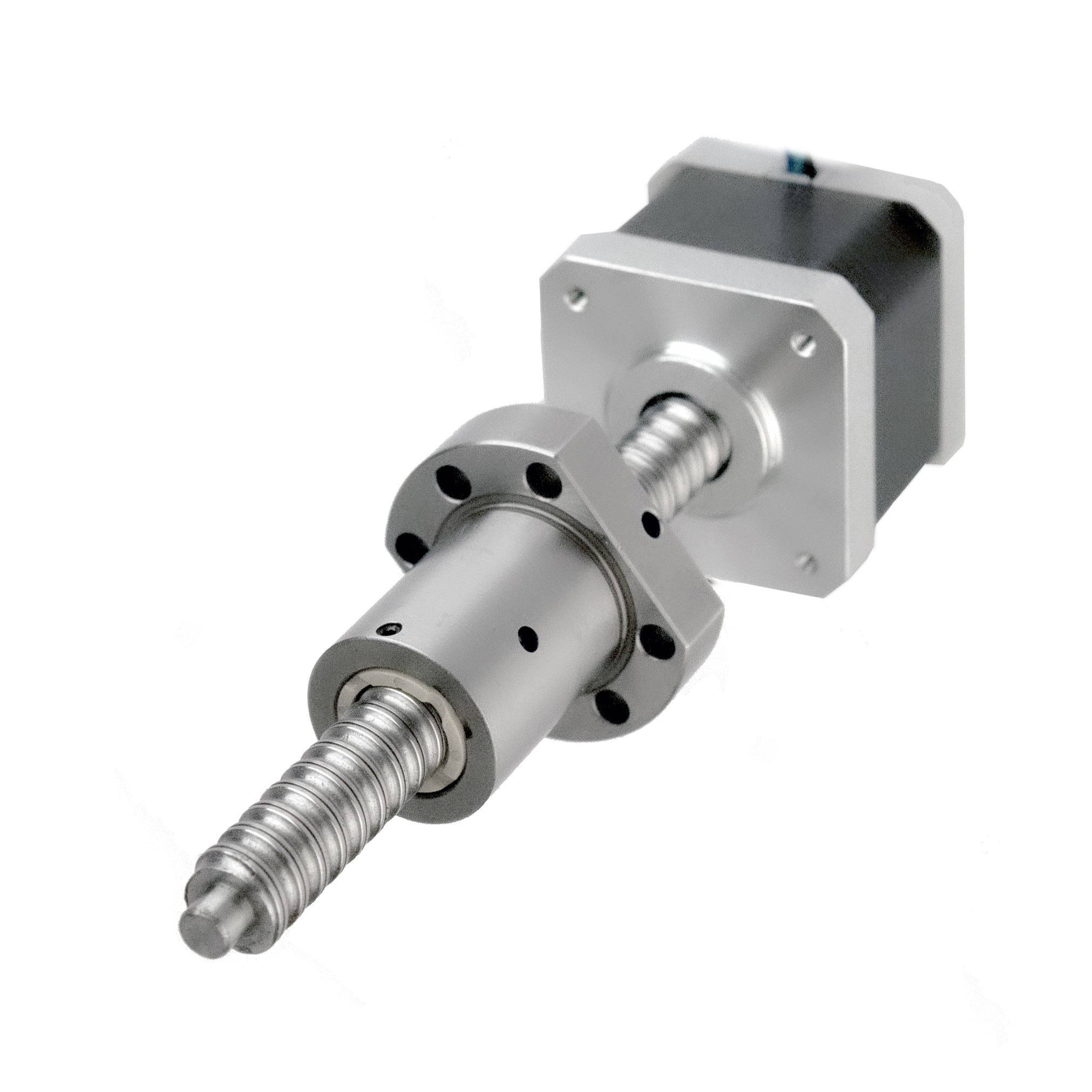

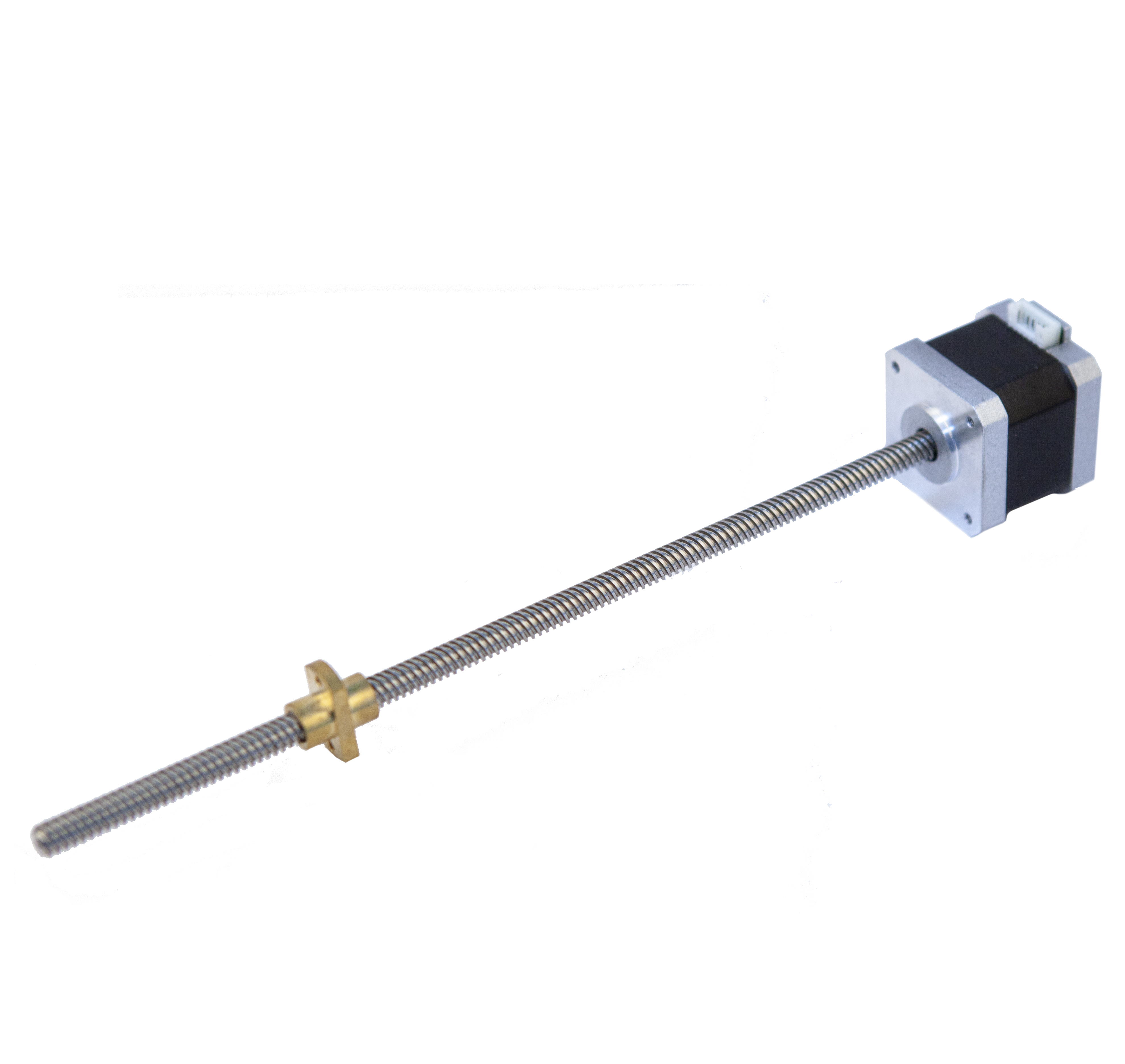

Dimension	Ball Screw (e.g., ACT 34HSL with ball screw)	Lead Screw (e.g., ACT 17HSL4417-250)
Technical Parameters	• Positioning accuracy: ±0.003 mm per 300 mm • Efficiency: >90% (recirculating balls) • Max linear speed: up to 1 m/s (dependent on lead) • Backlash: minimal (<0.02 mm) with preload • Dynamic load capacity: high (e.g., 15 kN for 34HS frame)	• Positioning accuracy: ±0.01 mm per 300 mm (typical) • Efficiency: 20-80% (depending on nut material & lubrication) • Max linear speed: 0.3-0.5 m/s (limited by friction) • Backlash: moderate (can be reduced with anti-backlash nuts) • Dynamic load capacity: moderate (e.g., 5 kN for 17HS frame)
Suitable Applications	• Medical Equipment Hybrid Stepper Motor (e.g., syringe pumps, infusion systems requiring high repeatability) • High-Precision Hybrid Stepper Motor for semiconductor handling • Closed-loop stepper motors for industrial robots with high-speed pick-and-place • Automated packaging lines requiring fast indexing	• Stepper motors for syringe pumps (low to medium precision) • Stepper motors for textile machinery (continuous positioning) • Logistics Sorter Pushing Hybrid Stepper Motor where cost sensitivity is high • General-purpose linear stages with moderate accuracy
Cost (Per Unit, Approx.)	• Higher initial cost (ball screw assembly + preloaded nut) • Example: ACT 34HSL ball screw motor ~ $120-$180 (OEM volumes) • Replacement parts (nut/screw) also more expensive	• Lower initial cost (lead screw + bronze/plastic nut) • Example: ACT 17HSL lead screw motor ~ $40-$70 (OEM volumes) • Replacement nuts are inexpensive
Maintenance Difficulty	• Requires periodic lubrication and cleaning to prevent ball recirculation jamming • Contamination sensitive ( must be sealed in dusty environments) • Replacement requires skilled labor; bearing preload adjustment may be needed	• Lower maintenance: lead screw nuts are self-lubricating (plastic/bronze) • Tolerant to light contamination • Simple nut replacement without special tools; low labor cost

2. Supplier Comparison: Chinese Factory (ACT MOTOR) vs. International Brands

When sourcing ball screw or lead screw stepper motors, buyers must evaluate not only the technology but also the supplier’s capabilities. Below we compare Changzhou ACT Motor Co., Ltd. (a leading Chinese manufacturer) with two internationally recognized linear motion suppliers: Thomson Industries (USA) and Nook Industries (USA).

Factor	ACT MOTOR (China)	Thomson Industries (USA)	Nook Industries (USA)
Price (OEM volume)	30-50% lower than international peers for comparable performance	Premium pricing (brand + R&D overhead)	Premium pricing (brand + distribution surcharge)
Customization Ability	High – custom winding, shaft length, flange, special lubrication, brake stepper motors, integrated stepper motors with encoder. In-house R&D team for fast prototyping.	Moderate – limited to standard catalog modifications; long lead times for custom orders	Moderate – primarily standard ball screw assemblies; customization requires large MOQ
Delivery Lead Time	4-6 weeks for custom motors; 2-3 weeks for standard models (from 70,000m² factory with smart inventory)	8-12 weeks (global supply chain constraints)	10-14 weeks (made-to-order)
After-Sales Network	Direct office in Bremen, Germany; Shanghai/Jinan offices; online technical support via WhatsApp/email (market@act-motor.com). 7/24 response.	Extensive global distributors but often slower for small-volume customers	Limited direct support; dependent on regional reps
Certifications	ISO9001, CE (Motor+Driver), RoHS, German Packaging Act. Full test reports (GTS) available.	ISO9001, CE, UL (for US market)	ISO9001, RoHS (limited)

3. Decision Model: 3-Step Method for Selecting Your Hybrid Stepper Motor Type

To systematically choose between ball screw and lead screw stepper motors, follow this three-step model tailored for industrial procurement:

Step 1: Define the Use Scenario

Answer these questions:

• What is the required positioning accuracy? (e.g., ±0.01 mm or ±0.003 mm?)
• What is the maximum linear speed and duty cycle?
• Is the environment clean or contaminated? (dust, moisture)
• What is the expected load (axial force)?

Example: For a Medical Equipment Hybrid Stepper Motor in a syringe pump requiring 0.005 mm repeatability and 50 mm/s speed, ball screw is strongly recommended.

Step 2: Match Technical Parameters

Use a selection matrix. For instance, if high efficiency (>90%) and low backlash are required, choose ball screw. If cost is primary and accuracy can be ±0.02 mm, lead screw suffices. ACT MOTOR provides detailed torque-speed curves and axial load ratings for both types, enabling precise matching.

Step 3: Calculate Total Cost of Ownership (TCO)

Include:

• Initial purchase cost
• Expected lifetime (ball screw: 10-20 million revolutions; lead screw: 2-5 million revolutions under similar load)
• Replacement part cost + labor
• Energy consumption (ball screw’s higher efficiency reduces electricity cost)
• Downtime cost for maintenance

A quick TCO example: for a two-shift operation (4000 hours/year) over 5 years, ball screw may have 15% higher initial cost but 25% lower TCO due to longer life and less downtime.

4. Case Study: European Medical OEM Selects ACT MOTOR Custom Ball Screw Stepper Motor

Background: A Germany-based manufacturer of precision infusion pumps needed a compact hybrid stepper motor with an integrated ball screw for a new generation of syringe drives. The requirements were: positioning accuracy ≤0.008 mm, axial load 80 N, speed 40 mm/s, and compliance with CE and RoHS. The initial budget was tight, and the project timeline required prototype delivery within 5 weeks.

Evaluation: The OEM approached three suppliers: Thomson Industries, Nook Industries, and Changzhou ACT Motor Co., Ltd. Thomson quoted $195/unit for a custom ball screw motor with 12-week lead time and minimum order of 500 pcs. Nook quoted $210/unit with 14-week lead time. ACT MOTOR, after reviewing the specification sheet, proposed a custom design using their 23HS frame with a miniature ball screw assembly (lead 5 mm), stepper motor with encoder for closed-loop feedback, and a special food-grade grease for medical applications. The unit price was $98 (500 pcs), with 4-week lead time for the initial 50 prototypes.

Outcome: The prototypes passed all performance tests, including 10,000-hour accelerated life test. The OEM placed a production order for 5,000 units per year. Key advantages that sealed the deal:

• Customization: ACT MOTOR offered a custom flange and shaft extension at no extra tooling cost.
• Low cost: 50% savings compared to Thomson and Nook.
• Fast delivery: 4 weeks vs. 12 weeks enabled the OEM to launch the product ahead of competitors.
• Reliability certification: ACT MOTOR provided ISO9001, CE, RoHS certificates, and detailed GTS test reports for both motor and driver.

Today, the OEM continues to source high-precision hybrid stepper motors and intelligent load-adaptive hybrid stepper motors from ACT MOTOR for multiple product lines.

Conclusion

Choosing between ball screw and lead screw hybrid stepper motors is no longer a one-size-fits-all decision. By applying the 3-step decision model—define scenario, match parameters, compute TCO—industrial buyers can align the technology with their application’s true needs. For those prioritizing cost-effectiveness, customization, and rapid delivery, sourcing from a reliable Chinese manufacturer like ACT MOTOR offers a compelling advantage over traditional international brands. With a 70,000m² smart factory, ISO9001/CE/RoHS certifications, and a dedicated service network in Europe (Bremen) and China, ACT MOTOR is well-positioned to support OEMs in medical, logistics, textile, and robotics automation with stepper motor drivers, geared stepper motors, NEMA8 hybrid stepper motors, and complete motion control solutions.
